FLIGHT HEAD 6S

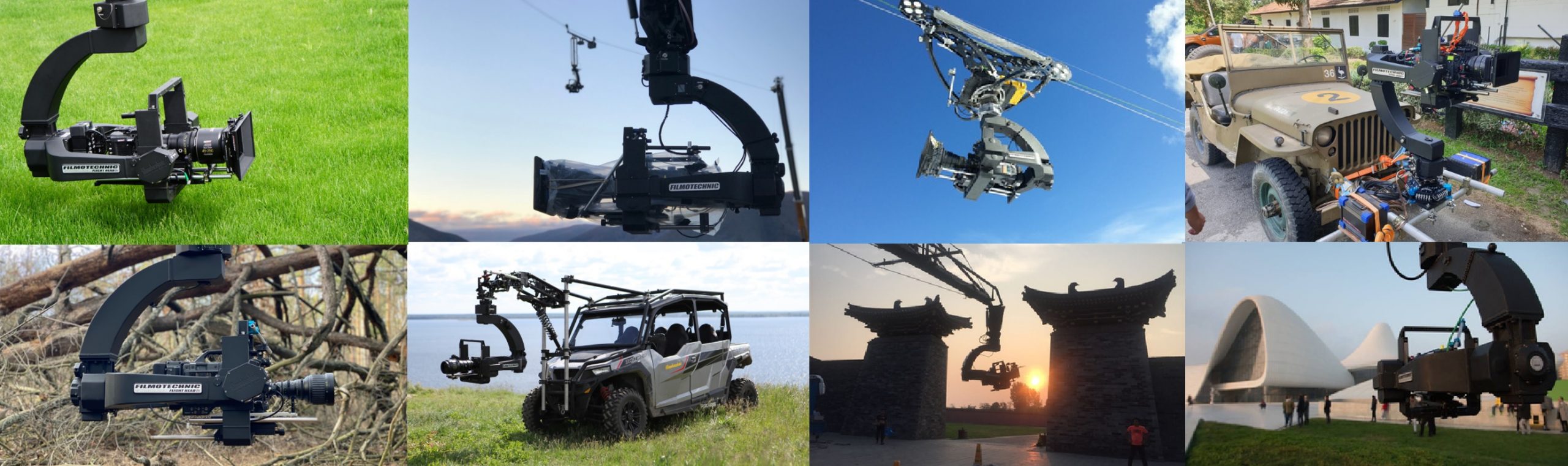

The legendary Academy Award-winning Flight Head is a true workhorse, known to be one of the most reliable and powerful remote heads in the industry. The Flight Head 6S (FH6S) is a 3-axis gyrostabilized camera remote head that was engineered to eliminate vibration and unwanted camera shakes during rough or fast camera moves. It can be mounted onto a wide variety of regular and telescoping camera cranes, dollies, tracking vehicles, helicopters, cable cam rigs, or any other Mitchell mount platform. Precisely engineered joysticks and handwheels offer responsive control, smooth and precise operation, and camera positioning no matter the size of the package.

  • Digital 3-Axis Gyrostabilized
  • GPS Gyro Vertical Horizon Control
  • Automatic Drift Compensation
  • Build-in digital shake generator + optional VIBRABOX
  • Recorded moves with 10 memory cells
  • Preston Zoom control via the Joystick Console
  • RF Wireless 9 channels with a ½ mile line of sight range
  • Intuitive touch screen display
  • Hold Position for every axis
  • Angular position indication
  • Auto and custom horizon
  • Underslung and Overslung mode
  • Optional 360° degrees roll function

FLIGHT HEAD 6S - SPECIFICATIONS

Roll continuous 360° (optional)
Pan continuous 360°
Tilt Range 246°
Speed pan 360°/ 2.2 sec
Temp. Range -30°C / +40°C
HDSDI Slipring
12V – 24V Power Slipring
Head weight 35kg / 77lbs
Payload up to 60kg / 132lbs

POWER REQUIREMENTS
24-30V DC
Standby 2A
Dynamic Max 15A
