FLIGHT HEAD Q2

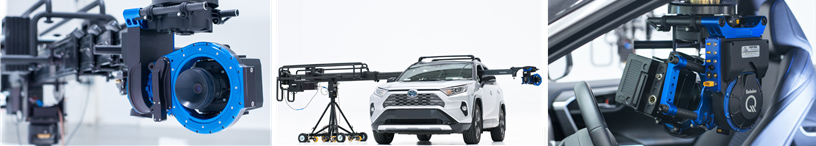

The Flight Head Q2 is a gyrostabilized remote head with the newest direct-drive motor technology. The head can be used in either 2-Axis or 3-Axis mode in both underslug and overslung with the industry-standard Mitchell mount. The Q2 is the perfect addition to our Technoscope camera crane series, as it can be mounted onto the nose to push through narrow spaces such as windows or vehicles. Q2 can be controlled with precisely engineered joysticks,  or handwheels that offer responsive control, smooth and precise operation.

  • Direct Drive Brushless Motors
  • Digital 2/3-Axis Gyrostabilized
  • Electronic Holds on all Axis
  • Automatic Drift Compensation
  • Repeatable Recorded Moves
  • RF Wireless 9 channels with a ½ mile line of sight range
  • Cmotion, ARRI, Preston FIZ Control in 3-Axis mode
  • Angular position indication
  • Intuitive touch screen display
  • Autohorizon or Steerable

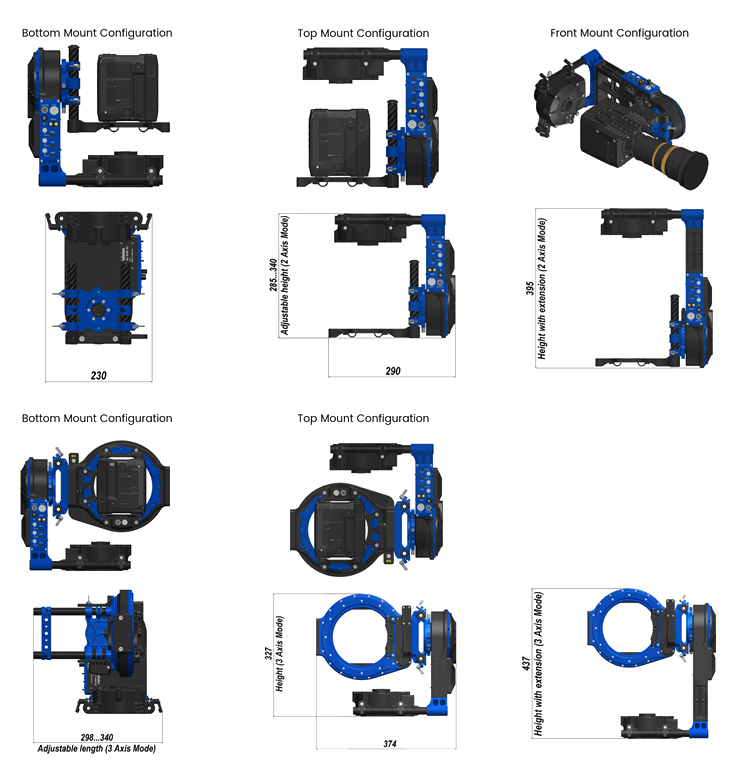

  • Underslung and Overslung mode with Mitchell Mount
  • Operated by Joystick, Handwheels or Pan Bar

FLIGHT HEAD Q2 - SPECIFICATIONS

Roll 360° continuous
Pan 360° continuous
Tilt Range 2-Axis 180°
Tilt Range 3 Axis +150° / -210°

Speed Pan: 360°/ 3 sec
Temp. Range: -20°C / +40°C

Head Weight:
10.5kg / 23lbs – 3 Axis
7kg / 16lbs – 2 Axis

Max Payload:
12kg / 26.5lbs
POWER REQUIREMENTS
28-32V DC

GO TO FOR
Technoscope Cranes
Tight Interior Spaces
