FLIGHT HEAD Q2

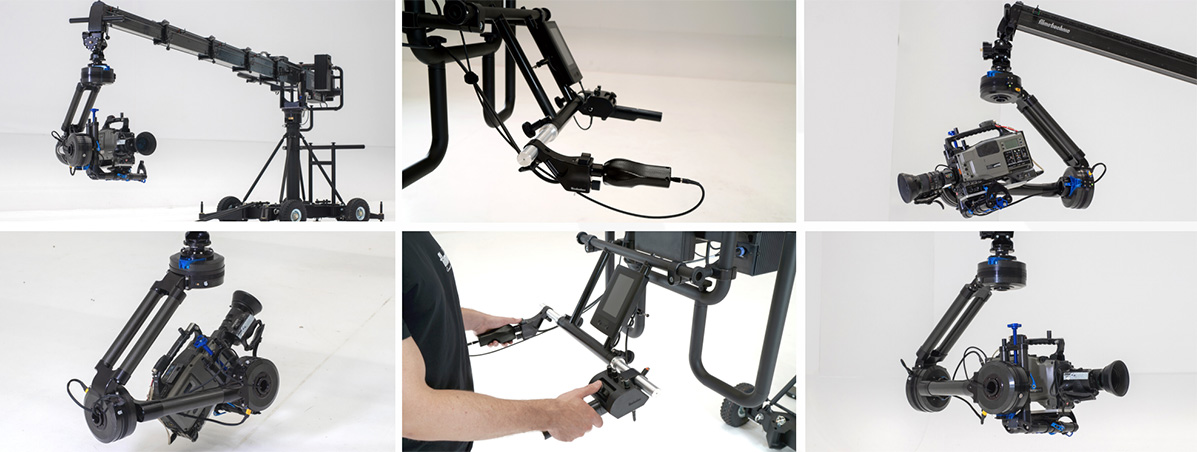

The 3-Axis gyrostabilized Flight Head TV is our newest remote head engineered for the broadcast industry. It fits any Mitchell mount camera crane or platform. The Flight Head TV is the perfect addition to our series of telescopic Technoscope cranes, as it transforms them into a one-man-operated jib. The head is controlled with hand control units which are attached to the back of the crane and offer responsive control and smooth operation.

  • Direct Drive Brushless Motors
  • Digital 2/3-Axis Gyrostabilized
  • Electronic Holds on all Axis
  • Automatic Drift Compensation
  • Repeatable Recorded Moves
  • RF Wireless 9 channels with a ½ mile line of sight range
  • Cmotion, ARRI, Preston FIZ Control in 3-Axis mode
  • Angular position indication
  • Intuitive touch screen display
  • Autohorizon or Steerable
  • Underslung and Overslung mode with Mitchell Mount
  • Operated by Joystick, Handwheels or Pan Bar

FLIGHT HEAD TV - SPECIFICATIONS

Roll 360° continuous
Pan 360° continuous
Tilt Range 2-Axis 180°
Tilt Range 3 Axis +150° / -210°
Speed Pan: 360°/ 3 sec
Temp. Range: -20°C / +40°C

Head Weight :
10.5kg / 23lbs – 3 Axis
7kg / 16lbs – 2 Axis
Max Payload :
12kg / 26.5lbs

POWER REQUIREMENTS
28-32V DC

GO TO FOR
Technoscope Cranes
Tight Interior Spaces
