U-CRANE 6 (RUSSIAN ARM 6)

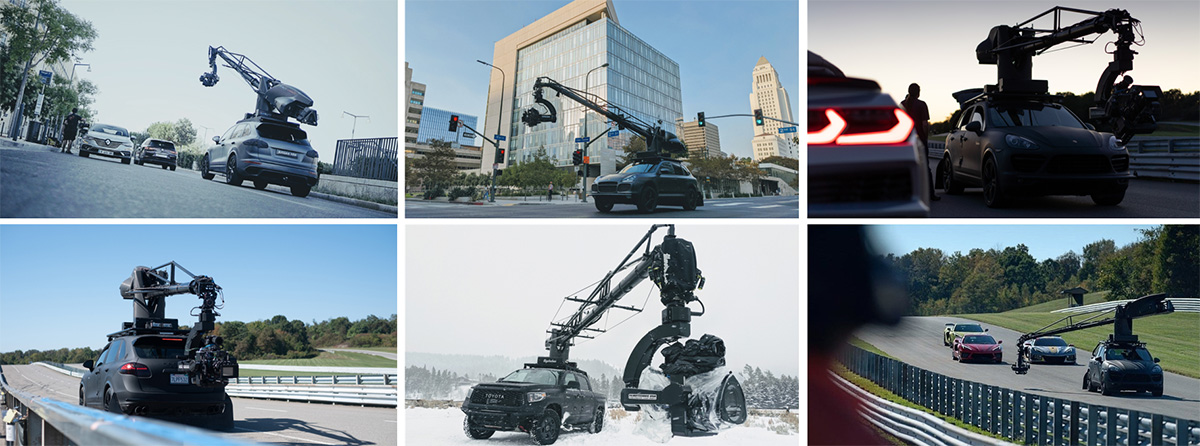

Our legendary Academy Award-winning AutoRobot, better known as the ‘U-CRANE’ has a reputation for reliability and innovation. U-CRANE 6 is a gyrostabilized remotely-operated camera crane that can be mounted on a camera car or any other specialized vehicle or vessel. This high-end technology allows for superior performance in speed, image stability, flexibility, and control and enables an unprecedented wide range of tracking shots. The arm is fully controllable by
joysticks from inside the vehicle and enables dynamic, stunning, and precisely controlled volumetric shots from just about any angle.

  • Quickly transforms on set into different lengths
  • Fixed length or telescopic arm (optional)
  • High torque, dynamic, smooth, and precise operation
  • Intuitive and responsive controls
  • Control on Limits, Speed, and Damping
  • Individual operator presets
  • Quiet operation for sound recording
  • Build out of Carbon Fiber and Aluminium composites

U-CRANE 6 - SPECIFICATIONS

Stabilization
Pan & Tilt

Length & Max Payload
7.6m : 80kg
25ft :176lbs

6.5m : 100kg
21ft : 220lbs

5.5m : 110kg
18ft : 242lbs

4.3m : 120kg
14ft : 265lbs

Pan Axis: 360° continuous
Pan Speed: 360° in 4.5 sec
Tilt axis: ±45°

Dry Weight 4.3m / 14ft:
375kg / 827lbs

Operating Speed 4.3m / 14ft
195kmh / 120mph

Temp Range
-20°C / +50°C
4°F / 122°F

POWER REQUIREMENTS
32 – 42V DC
Standby: 1A
Dynamic Max: 300A
